Business Tools UI Hints and UI Types

In this article, we will look at what UI Hints and UI Types are and show samples is each being used within the Business Tools.

Note: This article is a work in progress.

UI Hints

The UI Hints property sets the rendering type for the properties of the entity views and entity action views.

EntityActionView

RelatedList

The RelatedList UI Hint is used to redirect the user to an entity view page instead of opening up a modal for user interaction. The entity view page URL is constructed from the EntityView property in the following format <domain>/entityView/<entity view>.

e.g. https://localhost:4200/entityView/OrdersList-CompletedOrders

var actions = entityView.GetPolicy<ActionsPolicy>().Actions;
var entityActionView = new EntityActionView()
{
	Name = "CompletedOrders",
	IsEnabled = true,
	UiHint = "RelatedList",
	EntityView = "OrdersList-CompletedOrders",
	Icon = "signal_flag_checkered"
}
actions.Add(entityActionView);

EntityView

The following list of UI Hints can be utilised for entity views.

Flat (default)

The default UI Hint for entity views is Flat. The hint is used for rendering a single set of properties as plain text.

Entity View Usage Supported Applicable UI Types
Page Yes N/A (All types will render as raw string values)
Modal Yes
  • Empty (string) Text
  • Empty (bool) Checkbox
  • Empty (DateTimeOffset) Date Time picker
  • AutoComplete
  • DownloadCsv
  • Dropdown
  • Multiline
  • RichText
  • Tags

Grid

The Grid UI Hint supports the rendering of child entity views in a table-row layout in the modal window, allowing additional rows to be added and removed.

Notes:

  • The Dropdown UI Type does apply the remove row control, therefore if all view properties of the row are set to Dropdown the row will not be able to be removed.
  • Only a single child entity view is supported as the UI renders a single Add Row button, which applies to the first child entity view.

Entity View Usage Supported Applicable UI Types
Page No N/A
Modal Yes
  • Empty (string) Text
  • Dropdown

List

The List UI Hint creates a card-like layout, each list item represented by a child entity view containing properties of supported UI Types.

Entity View Usage Supported Applicable UI Types
Page Yes
  • Empty (string) Text
  • Empty (DateTimeOffset) Date Time picker
  • DownloadCsv
  • EntityLink
  • FullDateTime
  • Html
  • ItemLink
  • List
Modal No N/A

MediaPicker

Details to come.

Entity View Usage Supported Applicable UI Types
Page No N/A
Modal Yes ???

Details to come.

Entity View Usage Supported Applicable UI Types
Page ??? N/A
Modal ??? N/A

Table

Similar to the List UI Hint, the Table UI Hint creates a table-row layout, each list item represented by a child entity view containing properties of supported UI Types.

Entity View Usage Supported Applicable UI Types
Page Yes
  • Empty (string) Text
  • DownloadCSV
  • EntityLink
  • Html
  • ItemLink
  • List
Modal No N/A

BraintreePayment

The BraintreePayment UI Hint is utilised to handle adding braintree payments. It injects an iframe to manage payment information via the Braintree gateway, but otherwise provides similar support as the default Flat UI Hint for view property rendering.

Entity View Usage Supported Applicable UI Types
Page No N/A
Modal Yes
  • Empty (string) Text
  • Empty (bool) Checkbox
  • Empty (DateTimeOffset) Date Time picker
  • AutoComplete
  • DownloadCsv
  • Dropdown
  • Multiline
  • RichText
  • Tags

UI Types

The UI Types property sets the control type that will be rendered against entity views.

View Property

The following list of UI Types can be utilised for view properties.

Empty

When no UI Type is provided, the UI control rendered is based off of the data type that is set against the RawValue property of the ViewProperty. The data types that influence the controls rendered are as follows:-

String

The default data type is the String value, which will render a text field. Most data types will fallback to their raw string value when evaluated.

var viewProperty = new ViewProperty()
{
	Name = "Standard Text Title",
	RawValue = "Standard Text"
};

entityView.Add(viewProperty);
Boolean (Checkbox)

Boolean values will be rendered as checkboxes for supported UI Hints, otherwise rendering as a string value.

var viewProperty = new ViewProperty()
{
	Name = "Boolean Field Title",
	RawValue = false
};

entityView.Add(viewProperty);
DateTimeOffset (Date Time Picker)

DateTimeOffset values will be rendered as jQuery Date Time pickers for supported UI Hints, otherwise rendering as a string value.

var viewProperty = new ViewProperty()
{
	Name = "Date Time Offset Field Title",
	RawValue = DateTimeOffset.Now
};

entityView.Add(viewProperty);
Decimal

Decimal values will render an input field with appropriate validation.

var viewProperty = new ViewProperty()
{
	Name = "Decimal Field Title",
	RawValue = (decimal)0.0
};
entityView.Add(viewProperty);

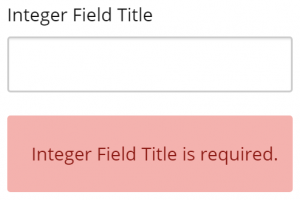

Integer

Integer values will render an input field with appropriate validation.

var viewProperty = new ViewProperty()
{
	Name = "Integer Field Title",
	RawValue = 0
};
entityView.Add(viewProperty);

Autocomplete

Search control that auto-completes after 4 characters. Can be combined with a policy to configure what it searches for.

var searchScopePolicy = context.CommerceContext.Environment.GetComponent<PolicySetsComponent>().GetPolicy<SearchScopePolicy>();
var policy = new Policy()
{
	PolicyId = "EntityType",
	Models = new List<Model>()
	{
		new Model() { Name = "SellableItem" }
	}
};
var policyList = new List<Policy>() { searchScopePolicy, policy };

var viewProperty = new ViewProperty()
{
	Name = $"Autocomplete Title",
	UiType = UiTypes.Autocomplete,
	Policies = policyList
};

DownloadCsv

Used for the coupon CSV download control.

var items = new List<string>() { "item1", "item2" };
var viewProperty = new ViewProperty()
{
	Name = $"DownloadCsv Title",
	UiType = UiTypes.DownloadCsv,
	RawValue = new JArray(items.Select(item => new JObject()
	{
		{
			"Code",
			 item
		}
	})).ToString()
};

entityView.Add(viewProperty);

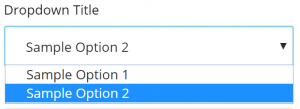

Renders a dropdown control. The list of options must be defined via the AvailableSelectionsPolicy. This behaves the save as Options and SelectList UI Types.

Allows linking directly to an entity. It will render a HTML link and build a URL to the Entity using the entity view’s ItemId property in the following format <domain>/entityView/Master/<entity version>/<item id>.

e.g. https://localhost:4200/entityView/Master/1/Entity-Catalog-Habitat_Master

FullDateTime

Renders date and time in short format.

var viewProperty = new ViewProperty()
{
	Name = "FullDateTime Title",
	UiType = "FullDateTime",
	RawValue = DateTimeOffset.Now
};

entityView.Add(viewProperty);

Html

Renders value as html.

var viewProperty = new ViewProperty()
{
	Name = "Html Title",
	UiType = "Html",
	RawValue = "<i>Sample</i> <b>Html</b>"
};

entityView.Add(viewProperty);

Creates a URL link in the format <domain>/entityView/<entity view name>/<Entity Version>/<entity id>/<item id>.

e.g. https://localhost:4200/entityView/Variant/1/Entity-SellableItem-6042567/56042567

List

Typically used to render a combobox. If it has an AvailableOptionsPolicy it well render as a combo with those as options.

var viewProperty = new ViewProperty()
{
	Name = "List Title",
	UiType = "List",
	RawValue = new String[] { "item 1", "item 2" }
};

entityView.Add(viewProperty);

MultiLine

Multiline text editor.

var viewProperty = new ViewProperty()
{
	Name = "MultiLine Title",
	UiType = "MultiLine",
	RawValue = "First Line\nSecond Line"
};

entityView.Add(viewProperty);

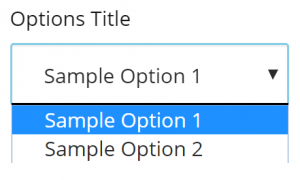

Options

Renders a dropdown control. The list of options must be defined via the AvailableSelectionsPolicy. This behaves the save as Dropdown and SelectList UI Types.

var viewProperty = new ViewProperty()
{
	Name = $"Options Title",
	UiType = "Options"
};

var availableSelectionsPolicy = new AvailableSelectionsPolicy();
availableSelectionsPolicy.List.Add(new Selection() { DisplayName = "Sample Option 1", Name = "Option 1" });
var selection = new Selection() { DisplayName = "Sample Option 2", Name = "Option 2", IsDefault = true };
availableSelectionsPolicy.List.Add(selection);
viewProperty.Policies = new List<Policy>() { availableSelectionsPolicy };
viewProperty.RawValue = viewProperty.GetPolicy<AvailableSelectionsPolicy>().List.Where(s => s.IsDefault).FirstOrDefault()?.Name ?? string.Empty

entityView.Add(viewProperty);

Product

Details to come.

RichText

WYSISWYG Rich text editor.

var viewProperty = new ViewProperty()
{
	Name = "RichText Title",
	UiType = "RichText"
};

entityView.Add(viewProperty);

SelectList

Renders a dropdown control. The list of options must be defined via the AvailableSelectionsPolicy. This behaves the save as Dropdown and Options UI Types.

var viewProperty = new ViewProperty()
{
	Name = $"SelectList Title",
	UiType = "SelectList"
};

var availableSelectionsPolicy = new AvailableSelectionsPolicy();
availableSelectionsPolicy.List.Add(new Selection() { DisplayName = "Sample Option 1", Name = "Option 1" });
var selection = new Selection() { DisplayName = "Sample Option 2", Name = "Option 2", IsDefault = true };
availableSelectionsPolicy.List.Add(selection);
viewProperty.Policies = new List<Policy>() { availableSelectionsPolicy };
viewProperty.RawValue = viewProperty.GetPolicy<AvailableSelectionsPolicy>().List.Where(s => s.IsDefault).FirstOrDefault()?.Name ?? string.Empty

entityView.Add(viewProperty);

Sortable

Used when rendering table headers to signify that they’re sortable.

Similar to the ItemLink, the SubItemLink creates a URL link in the format <domain>/entityView/<entity view name>/<entity version>/<item id [0]>/<item id [1]>, splitting the ItemId by the pipe separator. This UI Type is used when referencing entities differing from the current entity view.

e.g. https://localhost:4200/entityView/Variant/1/Entity-SellableItem-6042567/56042567

Tags

Renders jQuery tag control.

var viewProperty = new ViewProperty()
{
	Name = $"Tags Title",
	UiType = UiTypes.Tags,
	RawValue = new String[] { "item1", "item2" },
	OriginalType = UiTypes.List
};

entityView.Add(viewProperty);

Summary

We have reviewed the various UI Hints and UI Types that are available to us for customising the Business Tools and the instances where they are applicable.
